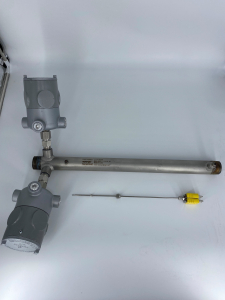

076619 TUTCO SUREHEAT Hot Air Threaded Inline Heater --6000/8000 Watts
The 076619 (or F076619) TUTCO SUREHEAT threaded inline heater is a Style A design that should be used whenever an absolute leak-proof system up to 100 psi (7 Bar) is required. This threaded inline hot air heater is designed for high pressure AND higher inlet temperature air applications needing a 1.25" MNPT fitting on the inlet and exit ends. This HIGH TEMPERATURE hot air heater provides a maximum process heat of 1652 degrees F at 11 SCFM by providing 6000/8000 maximum watts at 208/240 volt 1P power and 29/34 max. amps. The heater is 1.7" OD by 22" long with a 316 stainless steel housing. The recommended minimum airflow for this heater is 3 SCFM (85 SLPM), and the maximum inlet temperature should be no higher than 1000 degrees F.
This High-Temperature Threaded Inline air heater can be used for a variety of demanding applications, including fuel cell, R&D lab, automotive and aerospace testing. This hot air heater is capable of producing air/inert gas temperatures of 900 deg. C (1652 deg F) versus the standard inline heater max temperature of 750 deg C (1382 deg F). This industrial heater comes with a type K (1/8" OD) duplex thermocouple, 0.250" Nickel terminal posts with hardware, and a ground stud terminal. The pressure drop average is 1.6 psi (45" water column) at 900 deg C and 10 SCFM.
Compressed air or air from a regenerative blower at no more than 100 psi can be used to supply FILTERED, CLEAN, and DRY air to your heater. Dirt, grease, oil, oil vapors, corrosive gases, and reactive gases will damage the air heater. TUTCO SUREHEAT Air/Inert Gas heaters should be used to heat air or an inert gas only. Use with explosive gases or in an explosive ambient can result in an explosive event, possibly leading to a serious accident or injury.
